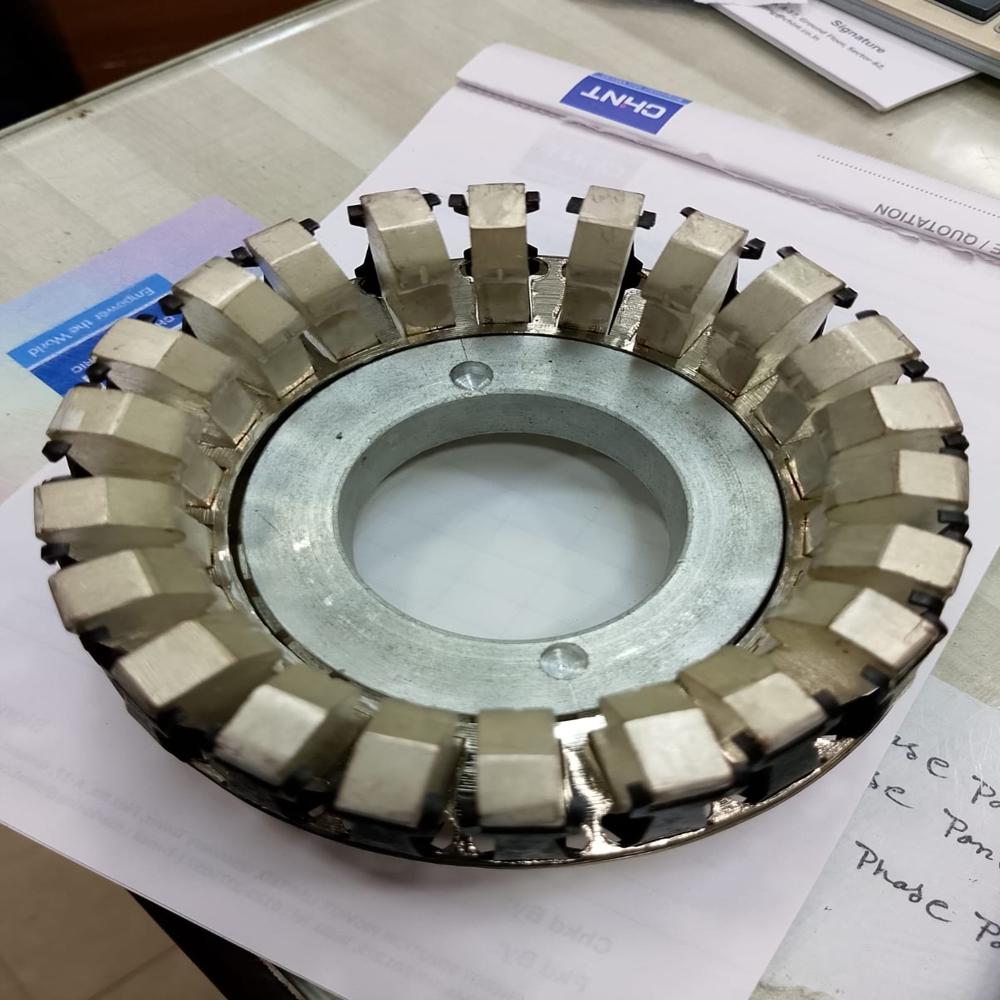

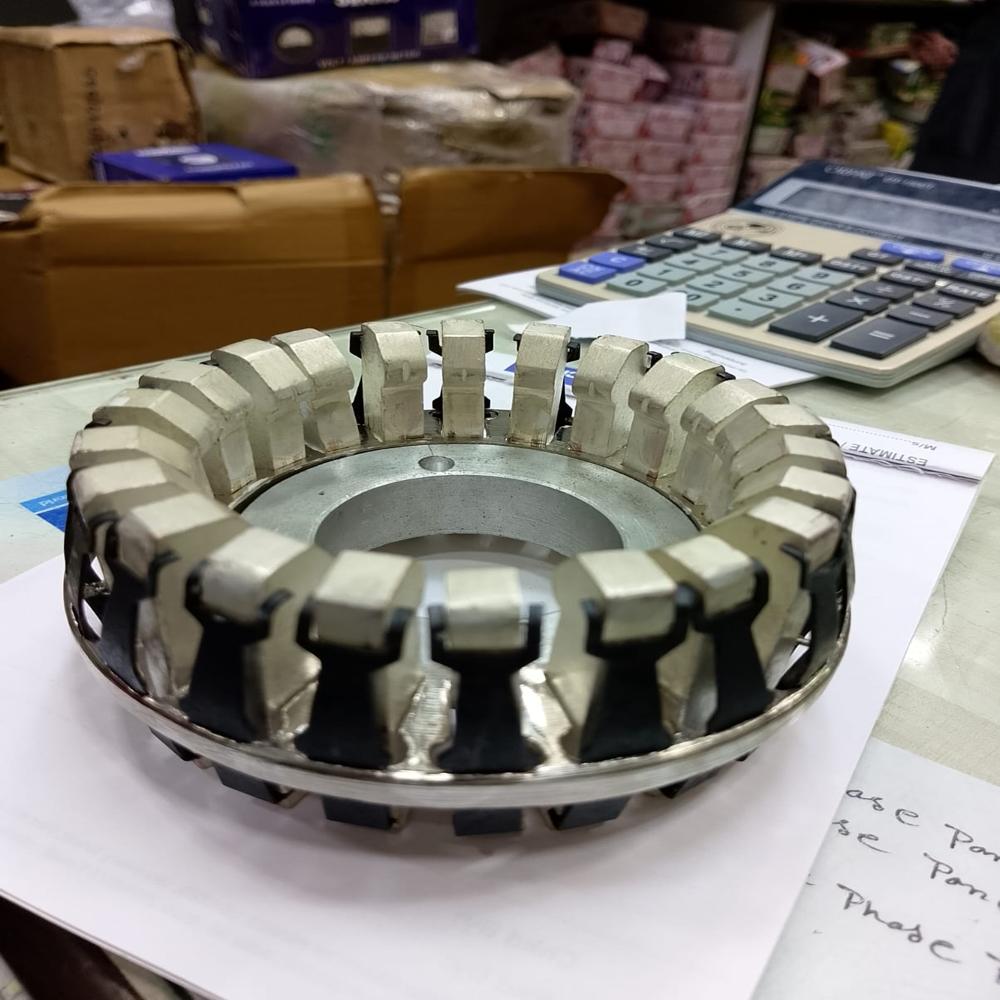

JAW CONTACT FOR VD4 MODEL ABB

Name: JAW CONTACT FOR VD4 MODEL ABB
Brand: KUSUM TRADE IMPEX
Price: 7500.0 INR
Availability: InStock

Price 7500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

JAW CONTACT FOR VD4 MODEL ABB Specification

IP Rating
IP20

Surface Finish
Electroplated/Silver Plated

Feature
Excellent Contact Reliability, Low Resistance

Overheating Protection
Yes, via material selection

Mounting Type
Panel Mount

Humidity %
95% RH non-condensing

Connector Type
Jaw/Clip Contact

Insulation Material
None (bare contact component)

Operating Temperature
-25C to +85C

Efficiency
99% Contact Efficiency

Shape
Rectangular with Projections

Product Type
JAW CONTACT FOR VD4

Application
Vacuum Circuit Breaker (VCB), VD4 ABB Model

Protection Level
High Conductivity and Mechanical Strength

Frequency (MHz)
50/60 Hz

Rated Voltage
12 kV (Suitable for VD4)

Output Type
Electrical Contact

Color
Copper/Brass Finish

Dimension (L*W*H)
128 mm x 35 mm x 12 mm (approx)

Weight
350 g

Size
Standard for VD4 ABB

Phase
Three Phase

Connection Type
Press Fit/Slide Fit

Material
Copper Alloy

No Of Poles
3

Current Rating
1250A / 1600A / 2000A (as per model selection)

Replacement Type
Direct replacement for OEM

Application Series
VD4 12kV, VD4 17.5kV, VD4 24kV

Environmental Compliance
RoHS Compliant

Standards
IEC 62271-100 Compliant

Storage Temperature
-30C to +90C

Thermal Withstand Capacity
High, as per ABB VCB specifications

Contact Resistance
60

Service Life
20,000 mechanical operations

Packing Type
Box

Order Quantity
As per requirement

JAW CONTACT FOR VD4 MODEL ABB Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash on Delivery (COD)

Supply Ability
50 Pieces Per Month

Delivery Time
10 Days

Packaging Details
STANDARD PACKING

Main Domestic Market
All India

About JAW CONTACT FOR VD4 MODEL ABB

Jump on the trending, scarce, and commanding solution for VD4 ABB circuit breakers with our meticulously decorated JAW CONTACT FOR VD4 MODEL ABB. Engineered for pivotal roles in reliable electrical applications, these contacts boast a high thermal withstand capacity, 99% contact efficiency, and low resistance. Featuring premium copper alloy construction and electroplated surfaces, the jaw contacts ensure a service life of 20,000 mechanical operations. Designed for direct OEM replacement, they comply with IEC 62271-100 and RoHS standards. With robust built quality and a high protection level, they are perfect for critical vacuum circuit breaker systems, adaptable to 12kV, 17.5kV, and 24kV VD4 series.

Robust Usage for Industrial and Plant Environments

JAW CONTACT FOR VD4 MODEL ABB is pivotal for installations in substations, power plants, and industrial facilities. Designed for three-phase vacuum circuit breakers, this commanding component excels in both high and medium voltage panels. Its robust, decorated design facilitates straightforward integration in new installations or as a replacement in operational VD4 ABB models, maximizing uptime for critical plant applications. Experience dependable performance and consistent connectivity in environments demanding high mechanical strength and conductivity.

Flexible Payment Terms and Packaging Solutions

The JAW CONTACT FOR VD4 MODEL ABB is available at a competitive list price, with payment terms designed for ease of transaction. Clients may outlay via advance payment, letter of credit, or as specified in order agreements. FOB Port services streamline shipment from major Indian ports. Secure, durable box packaging ensures quality and safety during transit. Sample policy is flexible, enabling evaluation before bulk procurement. Tailored for distributors, suppliers, and end-users seeking reliability and transparency.

FAQ's of JAW CONTACT FOR VD4 MODEL ABB:

Q: How does the JAW CONTACT FOR VD4 MODEL ABB ensure reliable performance in vacuum circuit breakers?

A: This jaw contact uses high-quality copper alloy with an electroplated finish, providing excellent contact reliability, low resistance, and a high protection level, complying with IEC 62271-100 standards. Its design delivers 99% contact efficiency and can achieve up to 20,000 mechanical operations, making it suitable for long-term use in demanding electrical environments.

Q: What is the process for replacing the JAW CONTACT in existing VD4 ABB models?

A: The jaw contact is a direct replacement type for OEM components, with press fit/slide fit connection options for easy mounting. Simply remove the old contact and install the new one using the panel mount system-no insulation or special tools are required.

Q: Where can the JAW CONTACT FOR VD4 MODEL ABB be used?

A: This component is optimal for installations in substations, power distribution centers, and industrial plants requiring vacuum circuit breakers. It's suitable for use in three-phase VD4 models rated for 12 kV, 17.5 kV, and 24 kV applications.

Q: What benefits does the high thermal withstand capacity offer in this jaw contact?

A: High thermal withstand capacity ensures the contact performs stably under high current loads, preventing overheating and ensuring extended service life. Material selection also enhances safety by mitigating excess temperature rise during operation.

Q: How can buyers obtain samples or place bulk orders?

A: Samples can be provided under a flexible sample policy, helping customers evaluate quality before committing to larger purchases. Orders can be placed as per customer requirements, with packaging and shipment handled through FOB Port from India.
